DSPPGM: Display Program

January 01, 2019

A little bit encyclopedic intro

IBM’s iSeries operating system (formely AS/400) is a legacy computer system which is mainly used in Financial Services industry (Banking, Insurance). It supports application development in many programming languages, yet the most famous are COBOL, RPG, CL.

In Feb 1993, IBM first introduced ILE (Integrated Language Environment) for ILE C and in May 1994 COBOL, RPG, CL join the party. ILE is anenvironment in which code from many languages can be compiled, bound together, and run.

So we can see PGMs with attributes CBL (for COBOL/400) and also with CBLLE (for ILE COBOL).

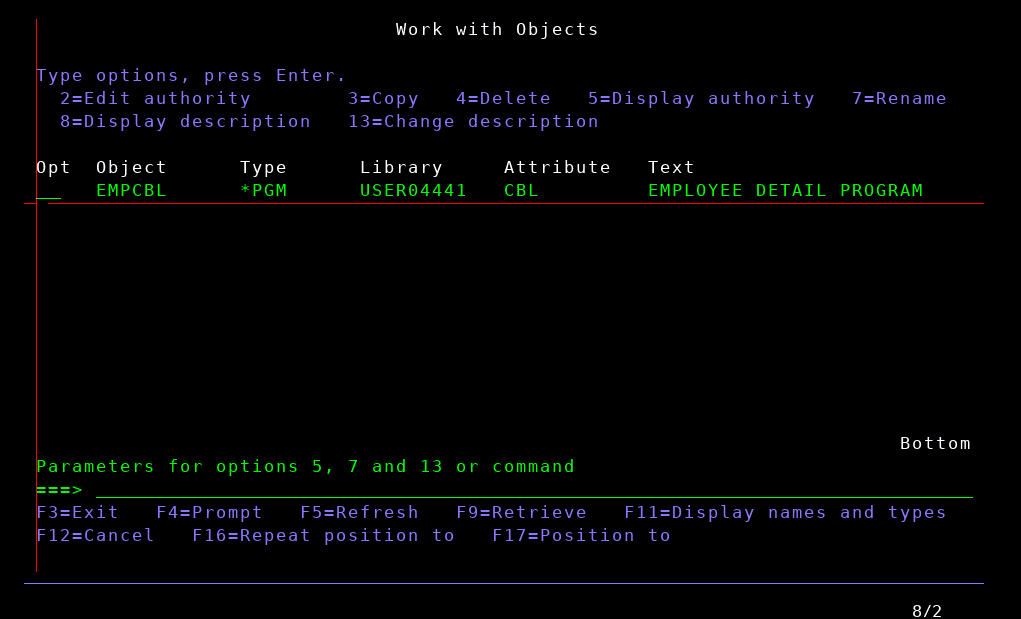

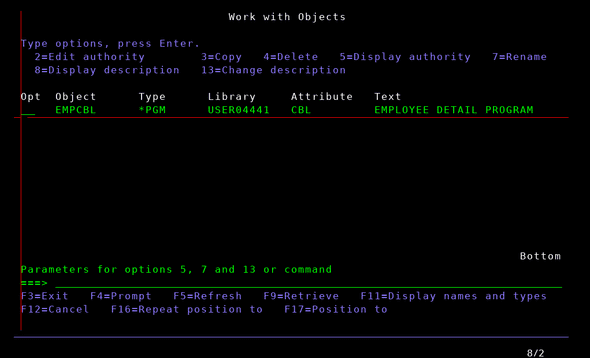

WRKOBJ_EMPCBL

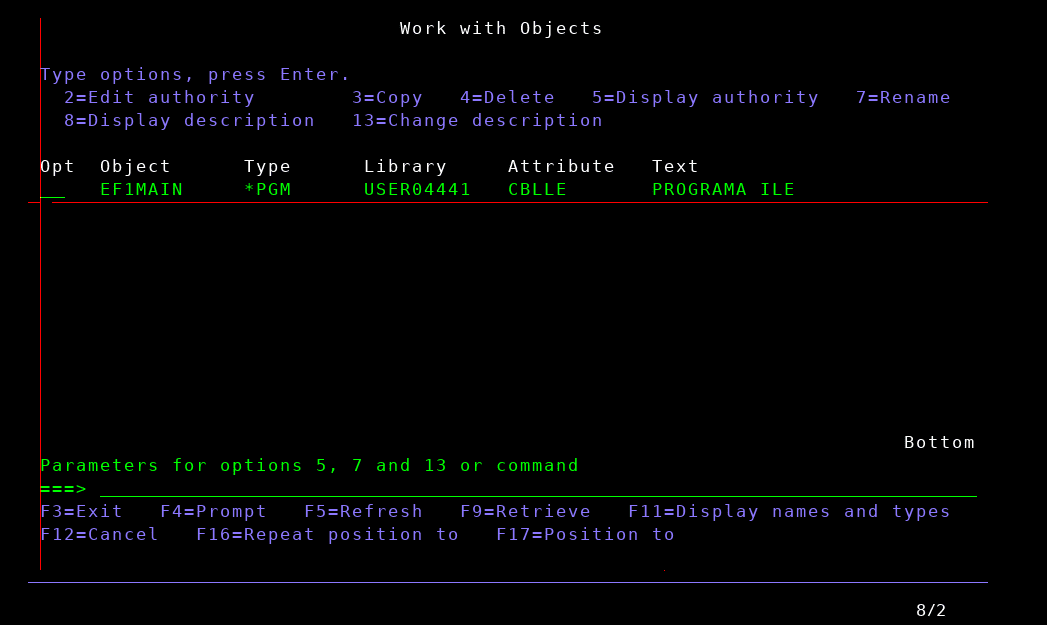

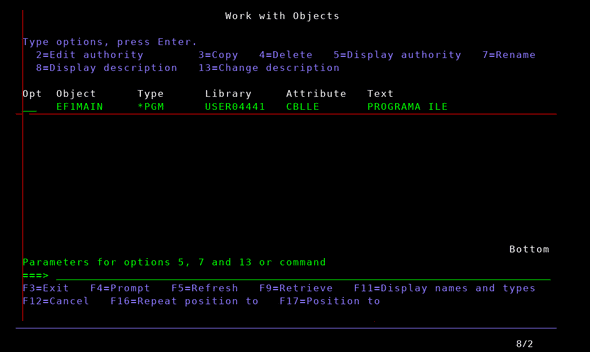

WRKOBJ_EF1MAIN

COBOL/400 is the standard COBOL adopted by IBM for the AS/400 system. It differentiates in the sense that the file handling for reports and subfiles, indicator usage and any other feature specific to AS/400 have been incorporated in it.

The problem

You, as a developer, often have to find the source code from which a pgm object was compiled. Someone tells you: “Try the DSPOBJD (Display Object Description) command”. Let’s do it! Go to command line, write DSPOBJD, press F4 button, fill in the required fields and press ENTER.

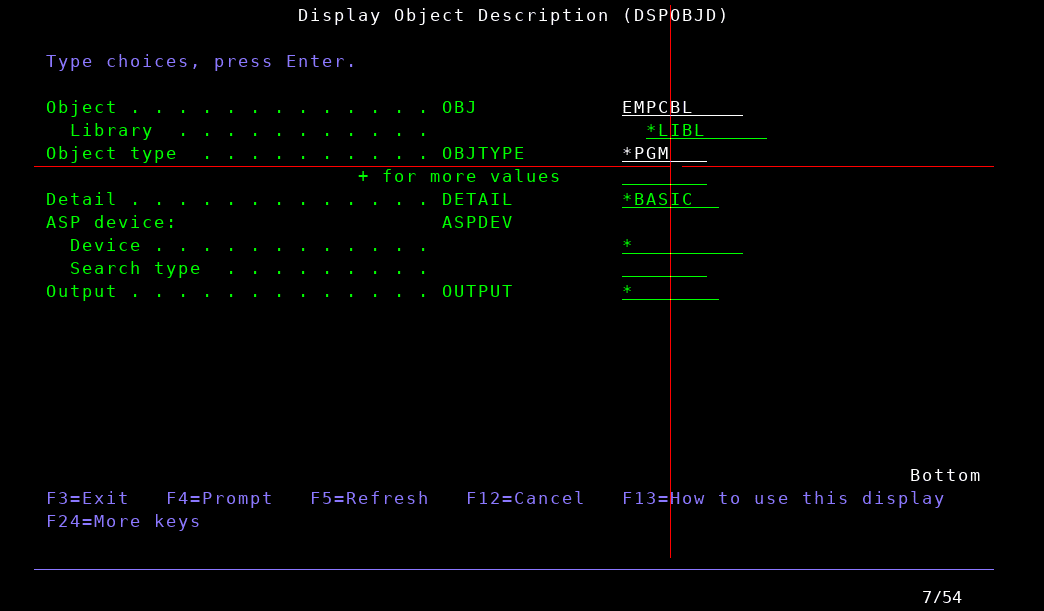

DSPOBJD_EMPCBL

Select option 8 and notice the displayed information.

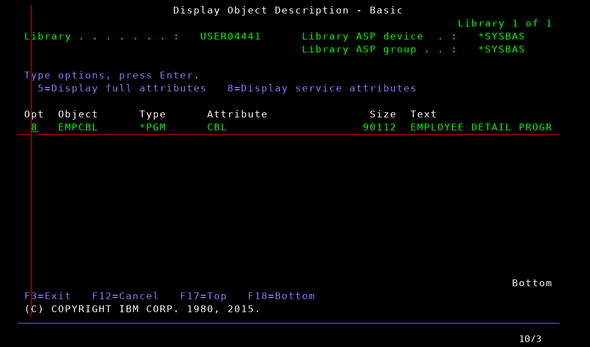

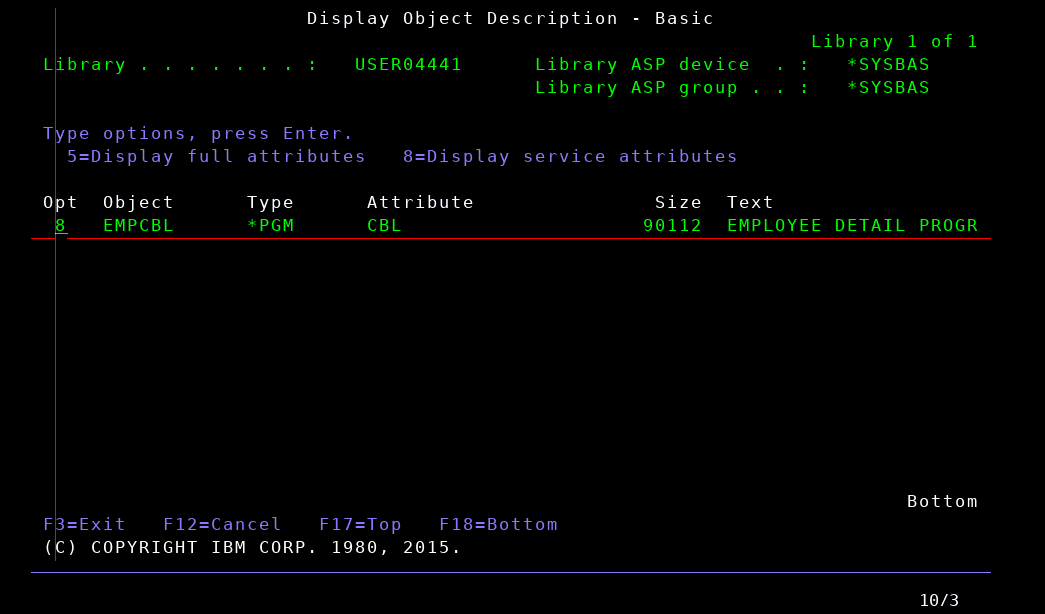

DSPOBJD_EMPCBL_basic

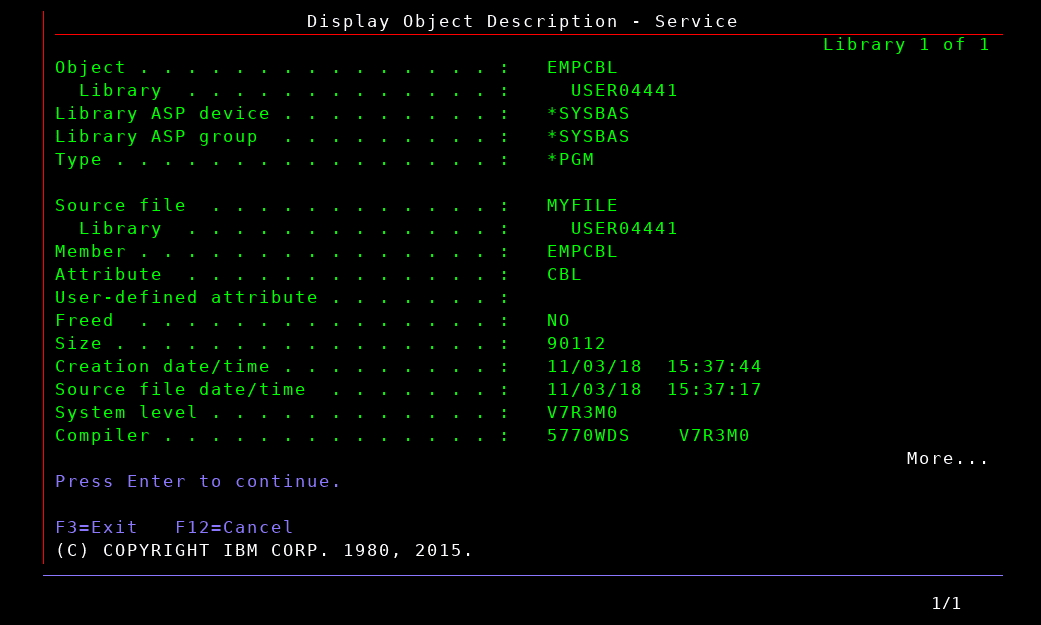

DSPOBJD_EMPCBL_service

Voilà! The source code is in Library USER04441, in Source file MYFILE, in member EMPCBL. Our problem is solved! Now let’s find EF1MAIN’s source code. Following the same process:

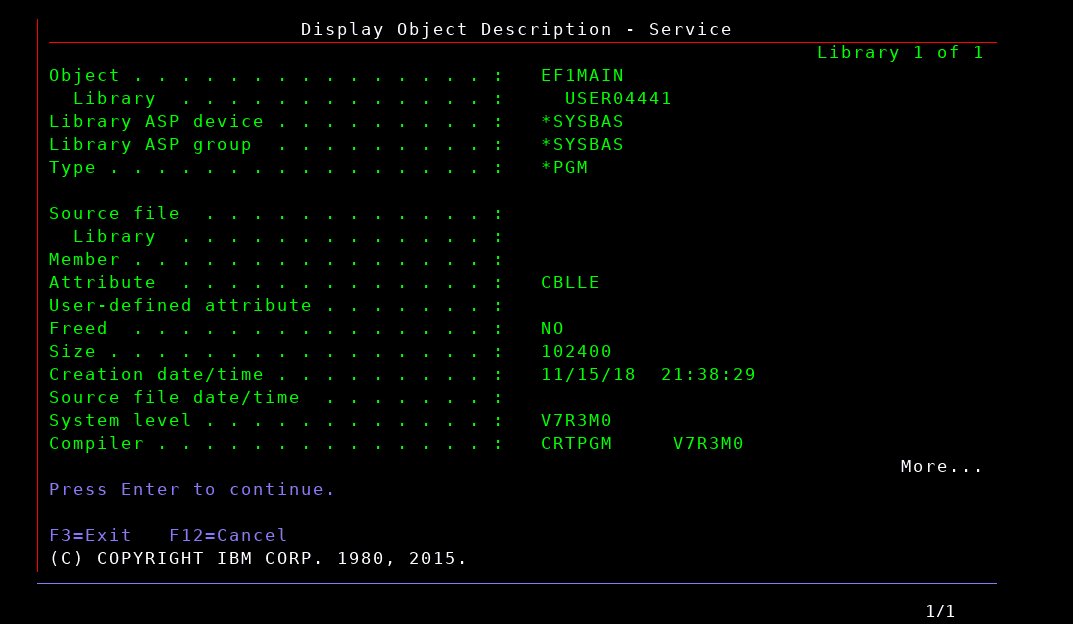

DSPOBJD_EF1MAIN_service

Wait! What’s going on? Where is our information? We have to remember that EF1MAIN is a CBLLE program. When it was compiled it didn’t produced directly the executable object, but an intermediate MODULE and from this the PGM was created.

The Solution

There is another command which is more generic: DSPPGM (Display Program). The Display Program Information for a CBLLE program has a lot of screen, so we have to press ENTER until we see:

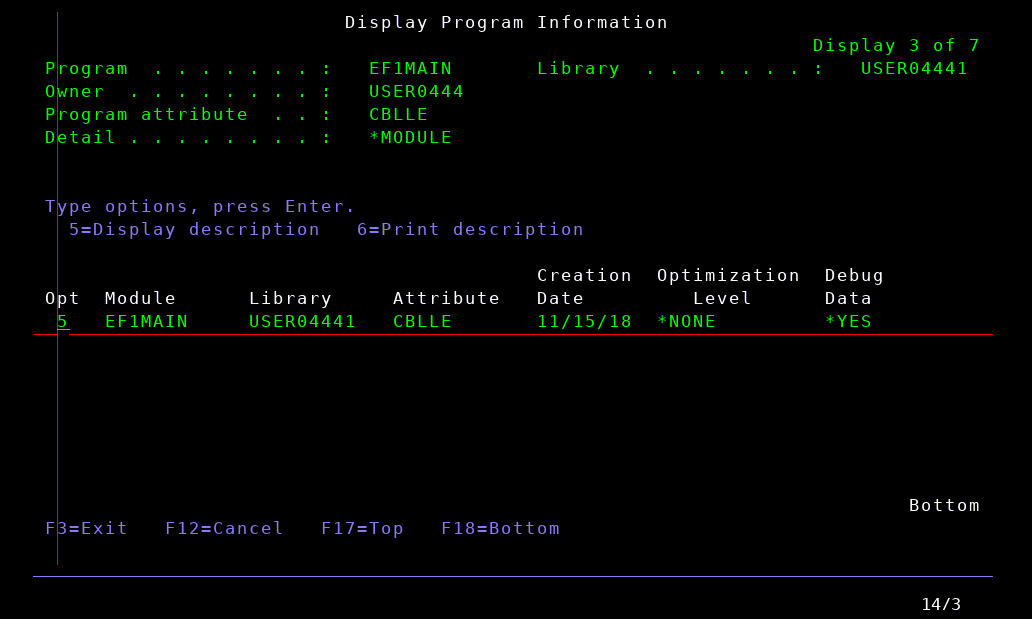

DSPPGM_EF1MAIN_inf1

With 5 option we get:

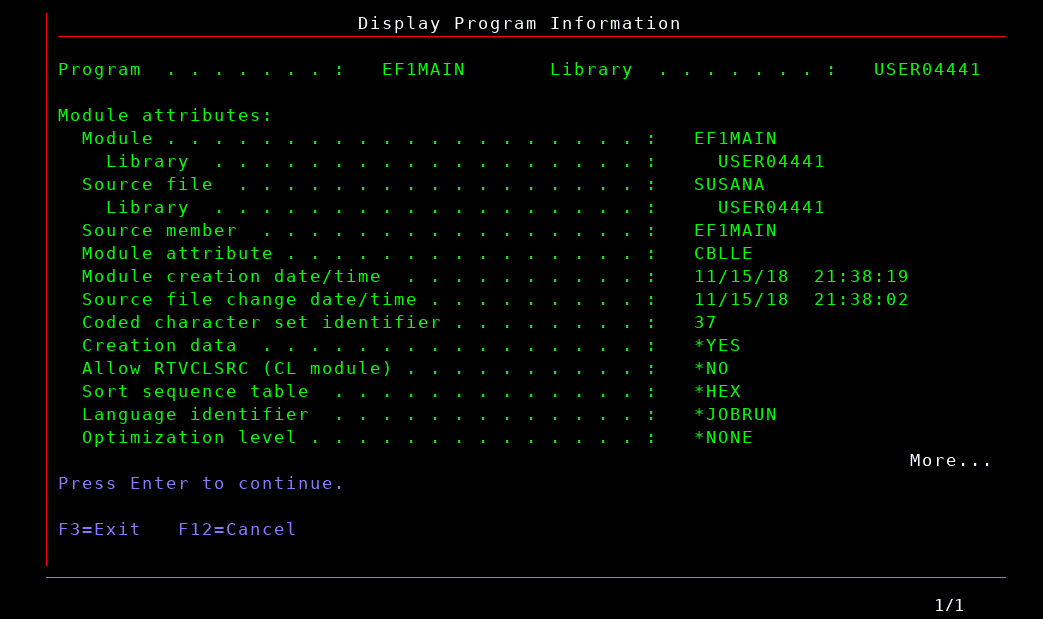

DSPPGM_EF1MAIN_inf2

The source code is in Library USER04441, in Source file SUSANA, in member EF1MAIN.

Now, we really solved our problem!
